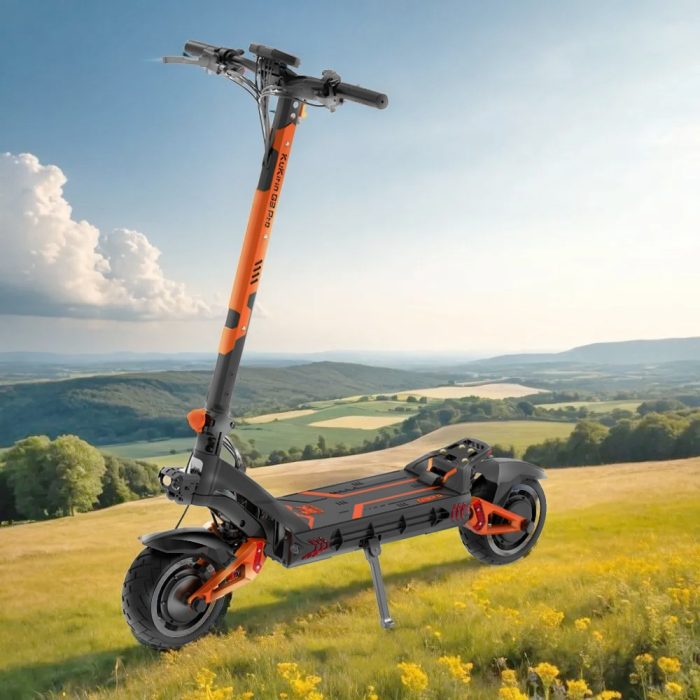

【Kukirin G3 Pro】1200W*2 Off-Road Electric Scooter

Description

Parameters

Model

• Name: Kukirin G3 Pro

Packaging Information

• Dimensions: 131 x 30 x 61.5 cm
• Gross Weight: 50 kg

Key Specifications

• Weight:
  • Net Weight: 43.5 kg
  • Maximum Load: 120 kg
• Dimensions:
  • Unfolded: 1295 x 630 x 1360 mm
  • Folded: 1295 x 630 x 595 mm
  • Handlebar Width: 22 mm
  • Handlebar Height from Pedal: 1050 mm
  • Ground Clearance: 180 mm
  • Pedal Size: 517 x 199 mm
  • Usable Pedal Area: 470 x 200 mm
• Speed:
  • No Load:
    • Gear 1: 25 km/h
    • Gear 2: 45 km/h
    • Gear 3: 70km/h
  • With 65 kg Load:
    • Single Drive:
      • Gear 1: 25 km/h
      • Gear 2: 45 km/h
      • Gear 3: 60km/h
    • Dual Drive:
      • Gear 1: 25 km/h
      • Gear 2: 45 km/h
      • Gear 3:65km/h
• Range:
  • Up to 80 km on a full charge
• Performance:
  • Climbing Ability:
    • Dual Drive: 35° incline
    • Single Drive: 25° incline (with 65 kg load)
  • Braking System: Front and rear hydraulic disc brakes with power cutoff
  • Braking Distance: 5-8 meters
  • Water Resistance: IP54 rating
• Materials:
  • Frame: 6061-T6 aluminum alloy deck and rear wing, 6082-T6 aluminum alloy chassis
  • Display: ABS material with nylon support

Motor

• Brand: Weite
• Voltage: 52 V
• Acceleration Mode: Sine wave
• Type: Split motor
• Power:
  • Rated Power: 1200 W x 2
  • Peak Power: 1500 W
  • Max Speed: 1950 rpm
  • Max Torque: ≥30 Nm

Battery

• Brand: Kukirin
• Capacity:
  • Single Cell: 2900 mAh
  • Battery Pack: 23.4 Ah
• Voltage: 52 V
• Charging Time: 6-7 hours (2A*2)
• Energy Consumption: 1.04 kWh
• Battery Protection: 14S60A system

LED Headlight

• LED Count: 2
• Power: 15 W
• Lighting Angle: 120°
• Illumination Area: 25 m²

Charger Specifications

• Input Voltage: 100-240 V
• Input Current: 2.5 A
• Output Voltage: 58.8 V
• Output Current: 2A*2

Tires

• Brand: Kukirin
• Size: 10 x 2.5 inches (inner tube), 255 x 80 mm (outer tire)
• Type: Off-road pneumatic
• Optimal Pressure: 345 kPa
• Material: Rubber

Braking Disc

• Brand: Kukirin
• Diameter: 140 mm
• Inner Thread Diameter: 5.5 mm

Display Screen

• Type: LED
• Size: 133 x 78 x 63 mm
• Features:
  • Kilometer/Mile selection
  • Voltage settings
  • Wheel size configuration
  • Speed sensor settings
  • Cruise control
  • Start mode selection (zero start/non-zero start)
  • Speed limit setting
  • Sleep timer
  • Start force settings
  • ODO reset

Mobile App

• Compatibility: Not available yet, but port is reserved for future use
• Functions:
  • Cruise control
  • Kilometer/Mile conversion
  • Speed limit removal
  • Zero start/non-zero start settings
  • Reset functions

Packaging Contents

• Included Items:
  • Electric scooter
  • User manual
  • Tool kit
  • Air pump
  • Folding instructions
  • 2 chargers
  • 4 handlebar clamp screws
  • Handlebar clamp
  • 2 keys
