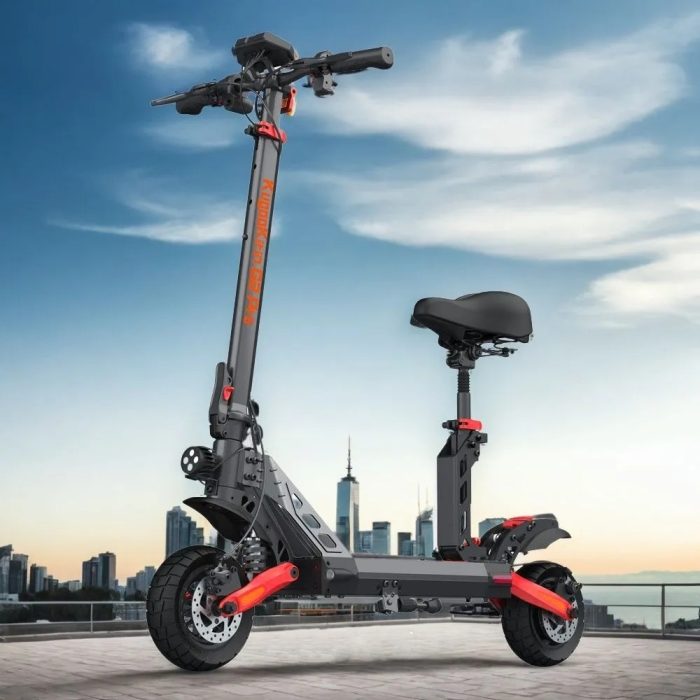

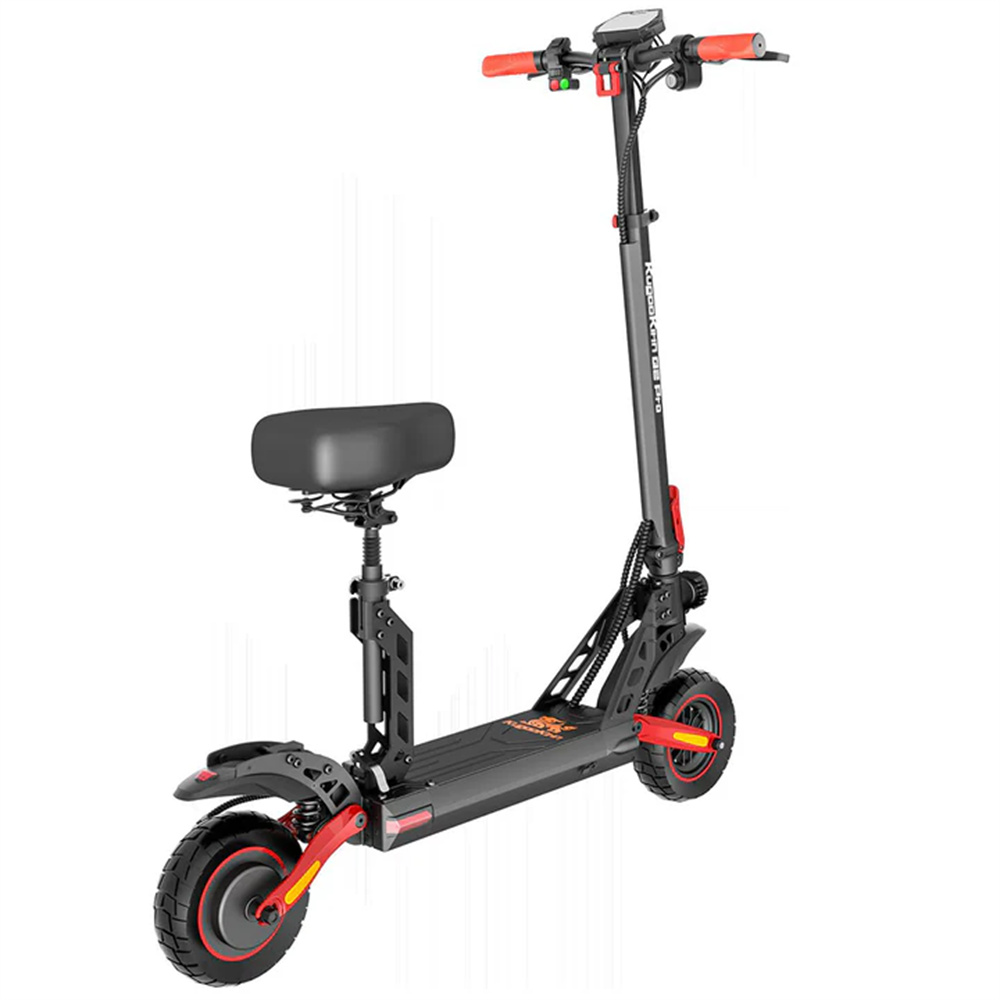

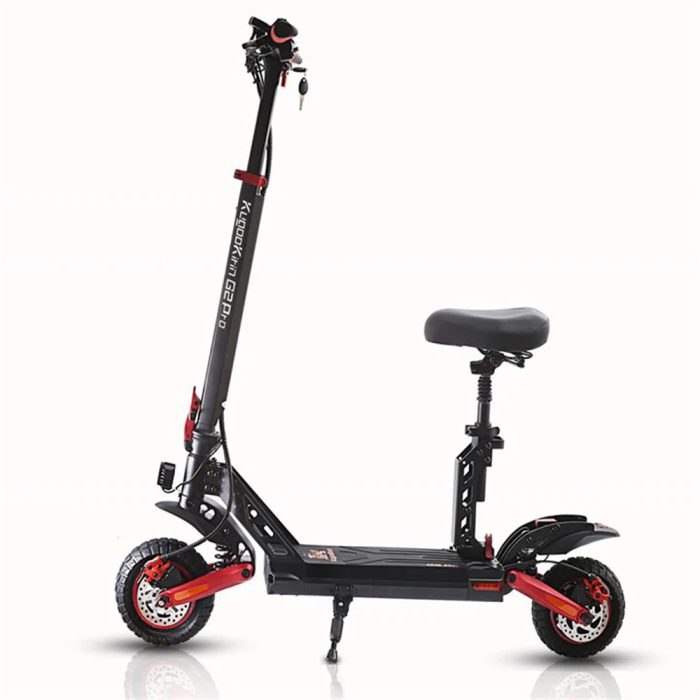

KuKirin G2 Pro electric scooter with free seat saddle 600W Power, 45KPH Max, 3 Mode Speed, 50KM Range, 48V 15Ah, 9 inch Pneumatic Tire | From Dubai Warehouse: Free shipping to UAE, Saudi Arabia, Qatar, Bahrain, and Oman

Description

Packing Information

• Packing Size: The inner box size is 1190*225*525mm, while the outer box size is 1200*235*545mm.

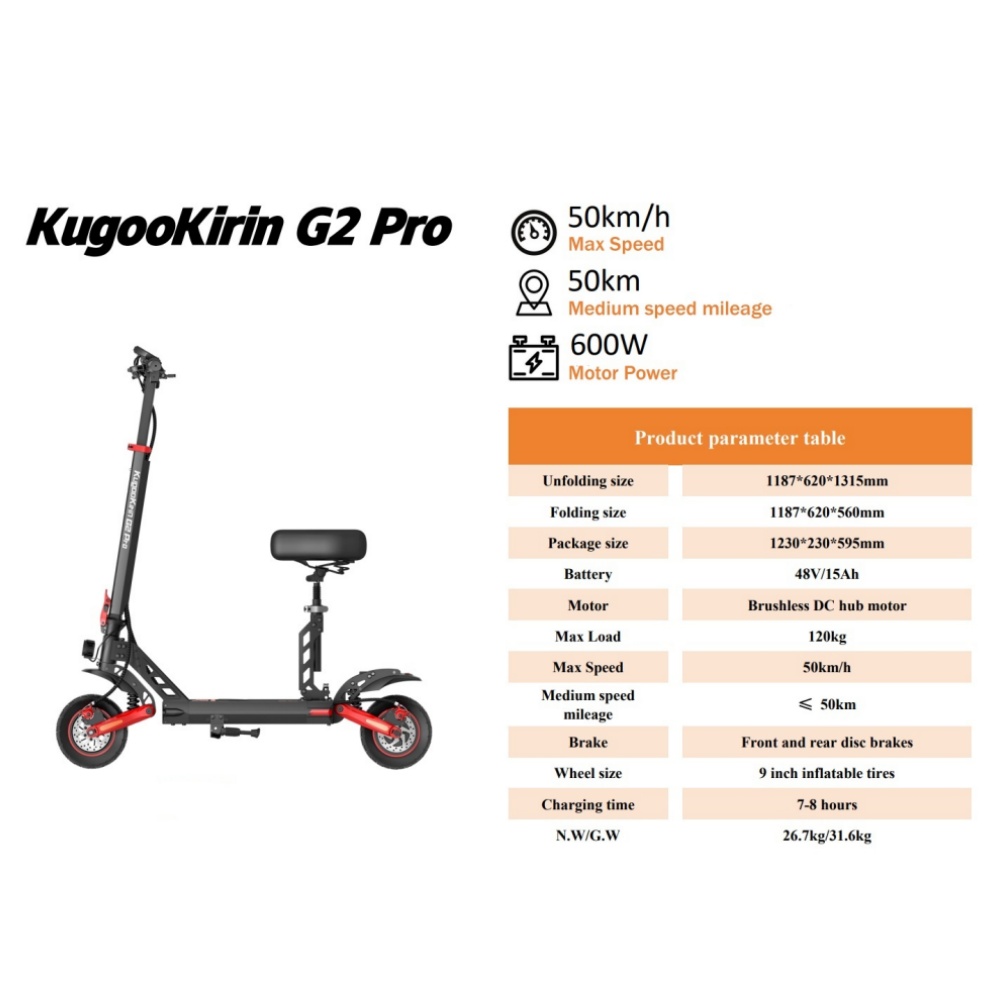

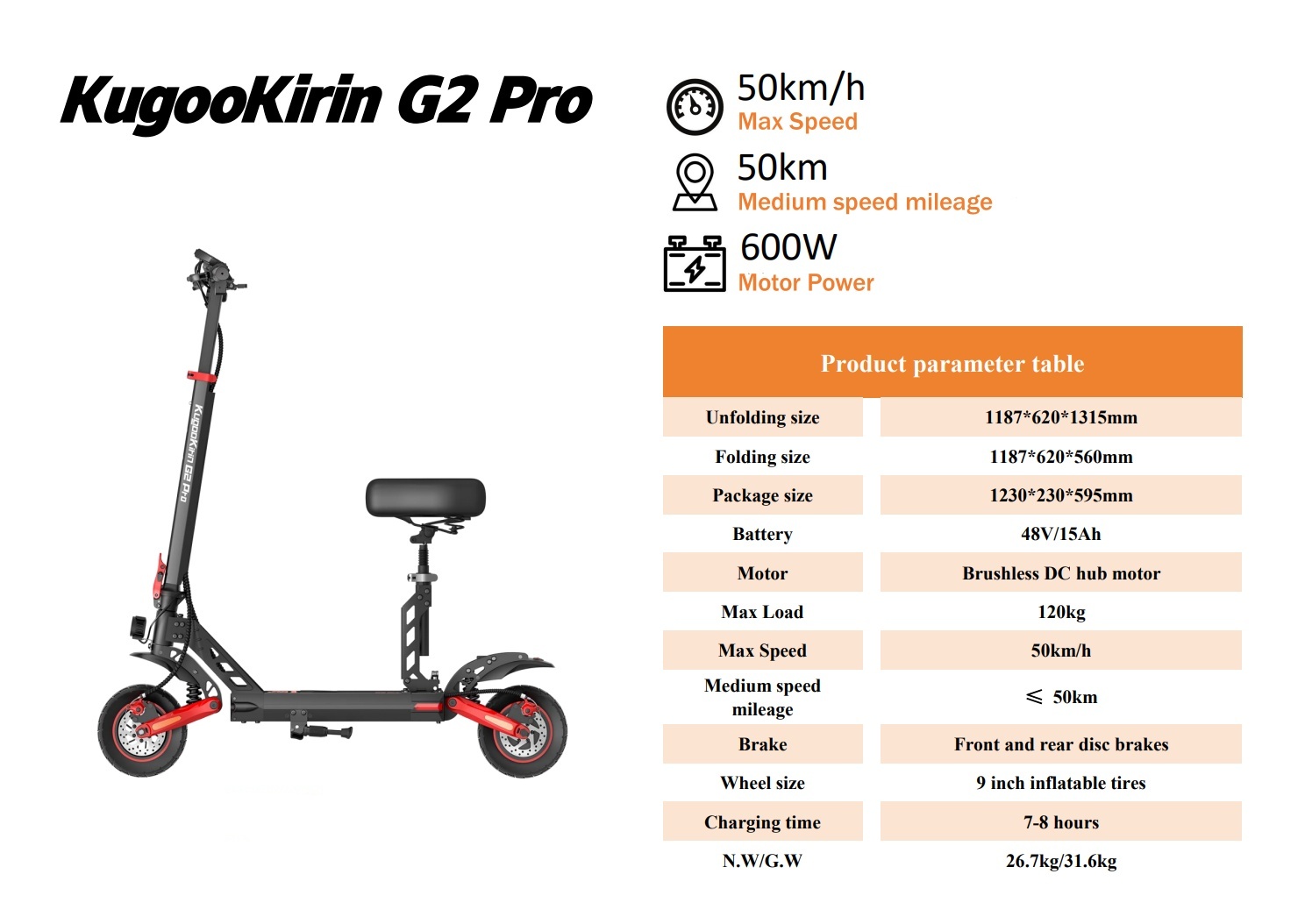

Product Basic Parameters

• Weight:
  • Gross Weight: 30±0.5kg (total weight including packaging).
  • Net Weight: 25±0.5kg (total weight of the scooter with the seat).
• Dimensions:
  • Expanded Size: 1170*590*1300mm (length*width*height).

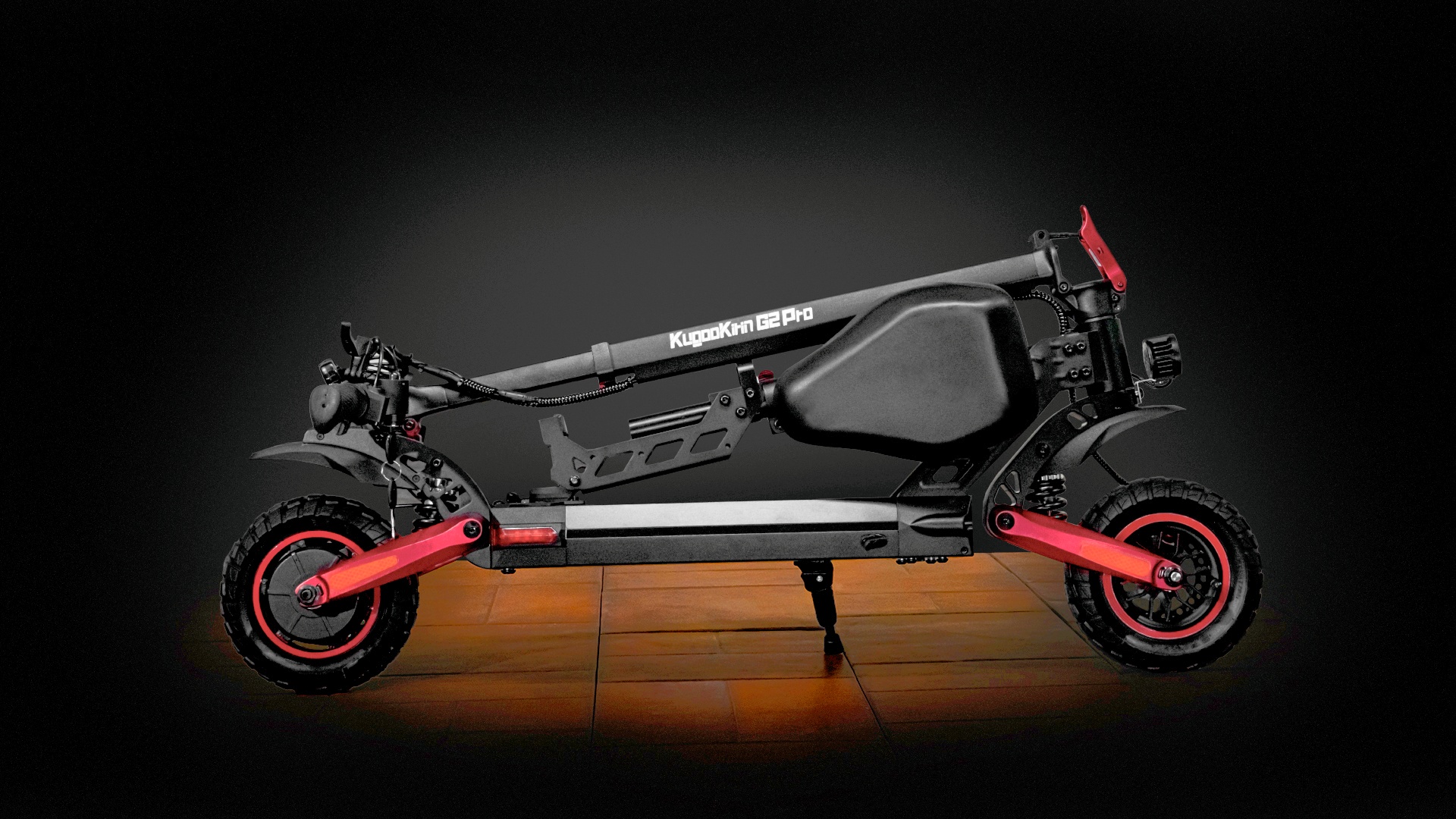

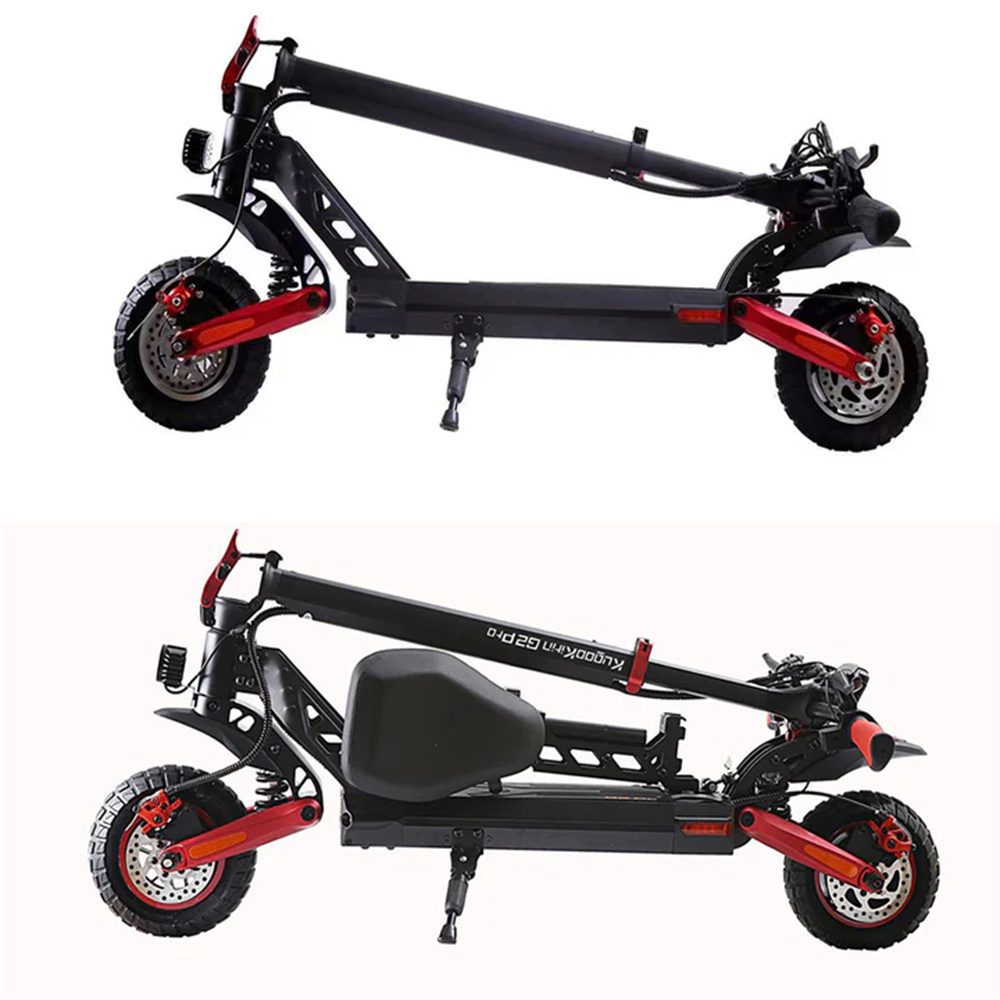

  • Folded Size: 1170*590*512mm (length*width*height).
  • Handlebar Diameter: 590mm.
  • Pedal Size: 500*160mm (length*width).
  • Pedal to Handlebar Distance: 1010mm.
  • Chassis Height: 140mm from ground floor.
• Maximum Load: 120kg.

Speed

• Maximum Speed: 45km/h (with a 65kg load).
• Speed Settings:
  • 1st Gear: 23km/h (idling), 20km/h (with 65kg load).
  • 2nd Gear: 43km/h (idling), 40km/h (with 65kg load).
  • 3rd Gear: 45km/h (idling), 45km/h (with 65kg load).

Mileage

• Middle Speed Mileage: Up to 58km with a 65kg load on a full charge.

Performance

• Climbing Ability: Capable of climbing slopes up to 19° with a 65kg load.

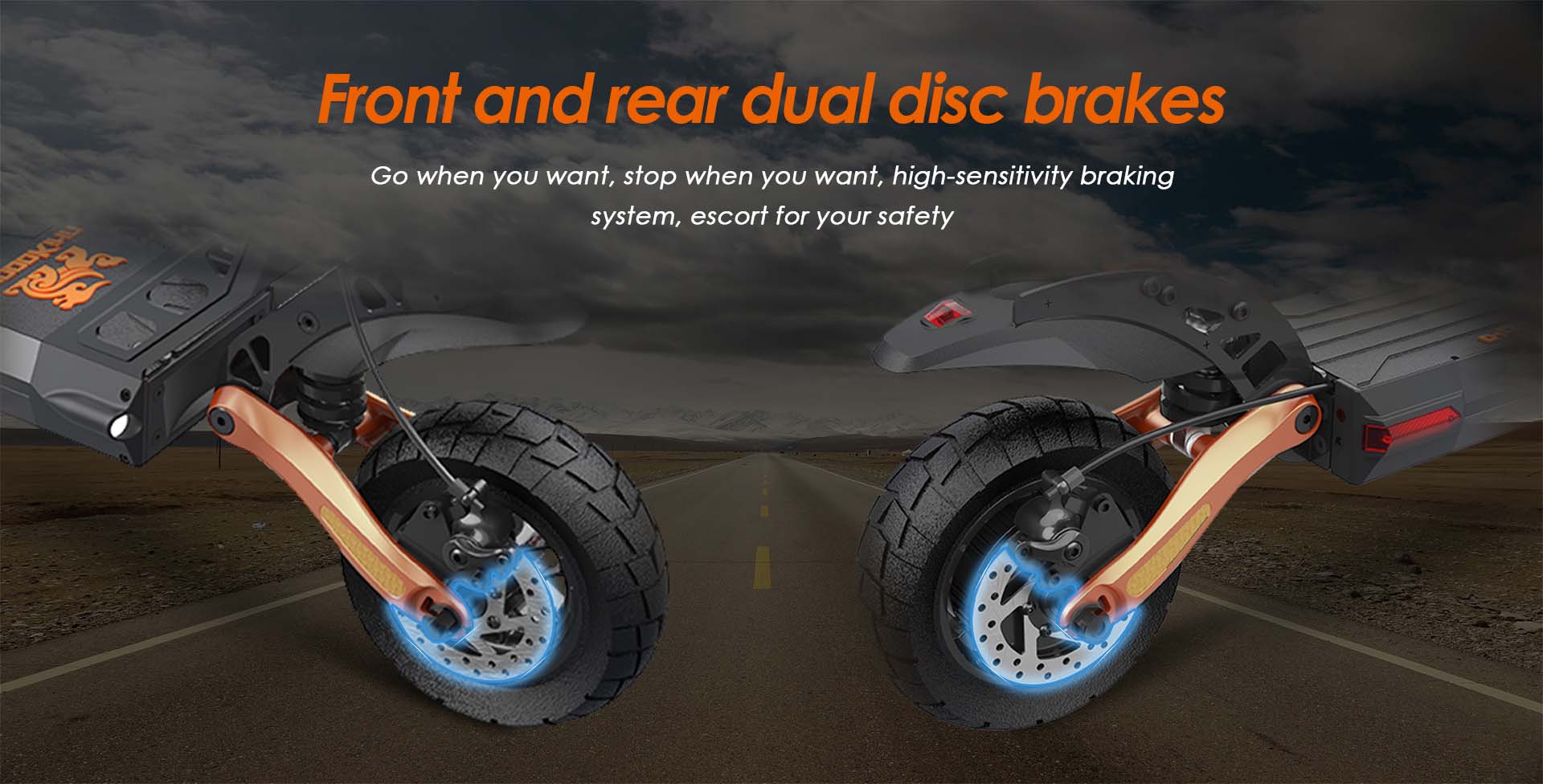

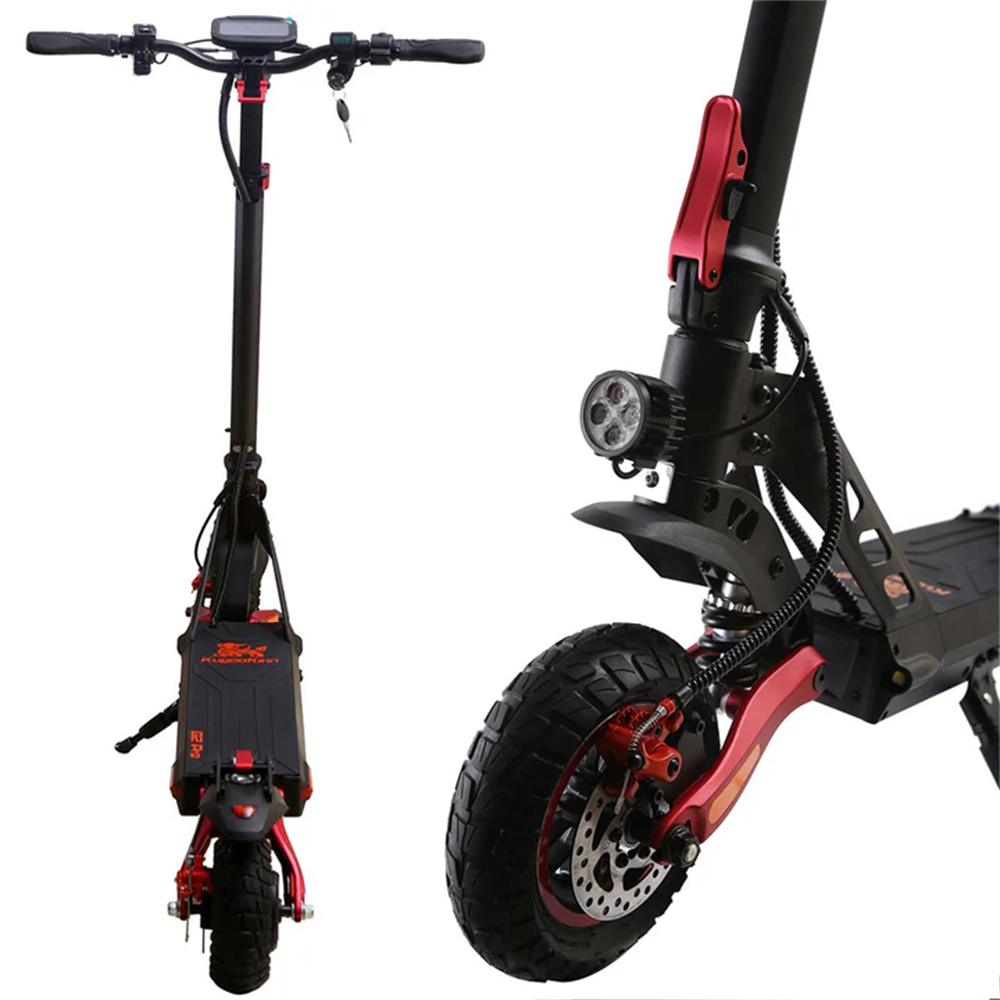

• Brake System: Front and rear disc brakes with an e-brake.
• Brake Distance: Stopping distance ranges from 5 to 12 meters.
• Waterproof Level: IP54.

Material

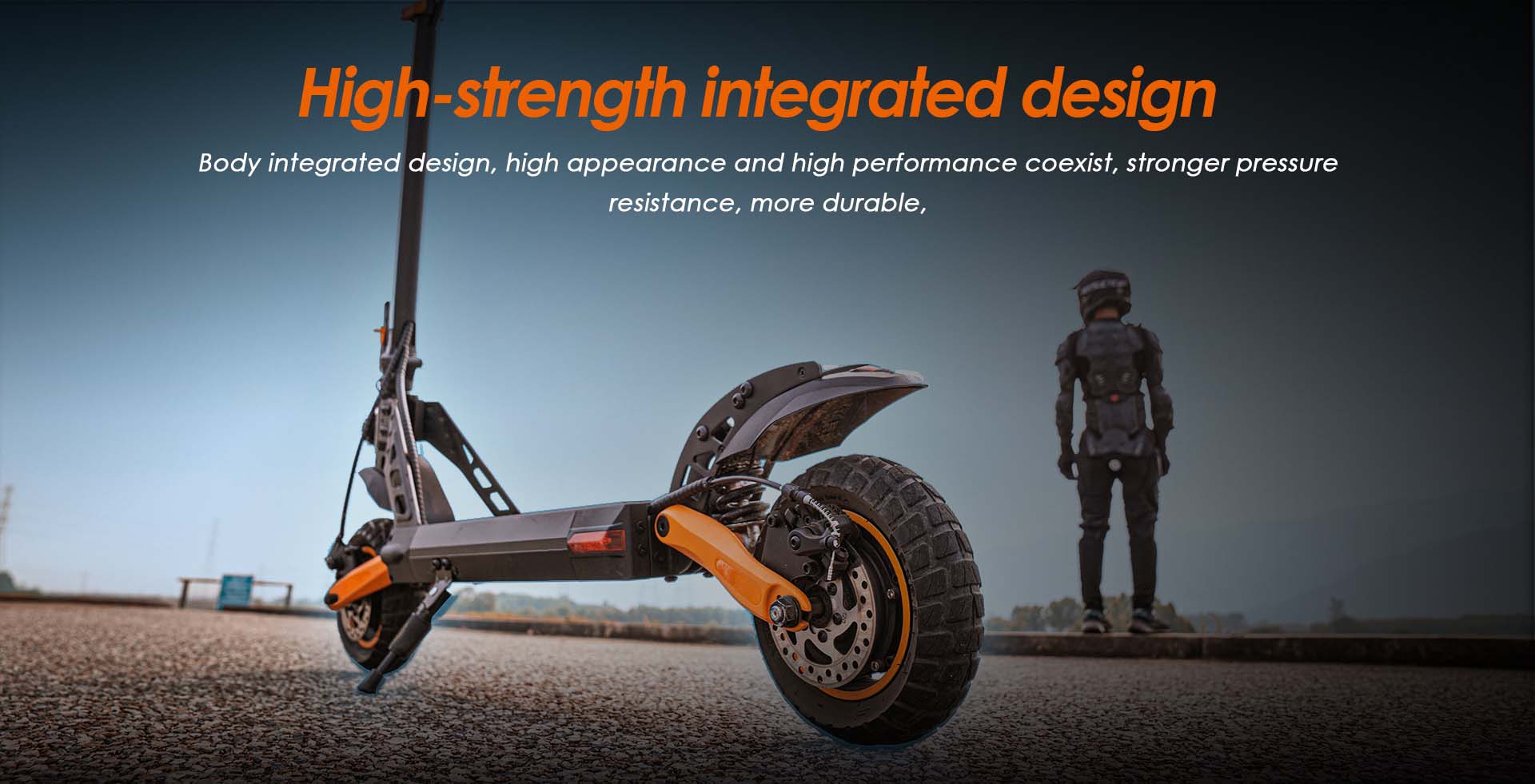

• Frame Material: Steel and Aluminum Hybrid Frame.

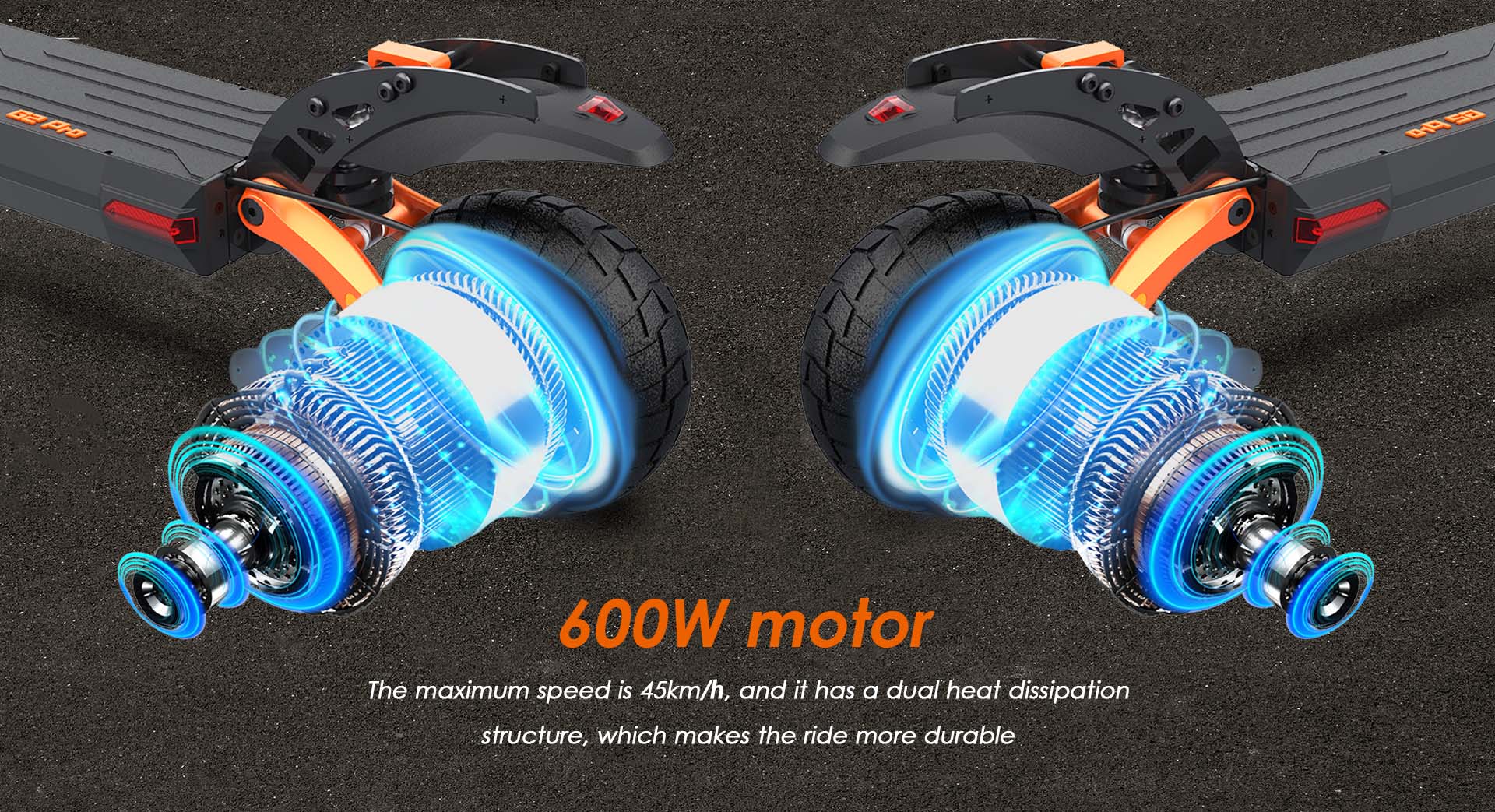

Motor

• Type: Hall brushless DC motor (rear wheel single drive).
• Voltage: 48V.
• Accelerate Mode: Sine wave.
• Power:
  • Rated Power: 600W.
  • Instantaneous Maximum Power: 1000W.
  • Rated Speed: 1080 rpm.
  • Maximum Output Torque: 21.93 N·m.

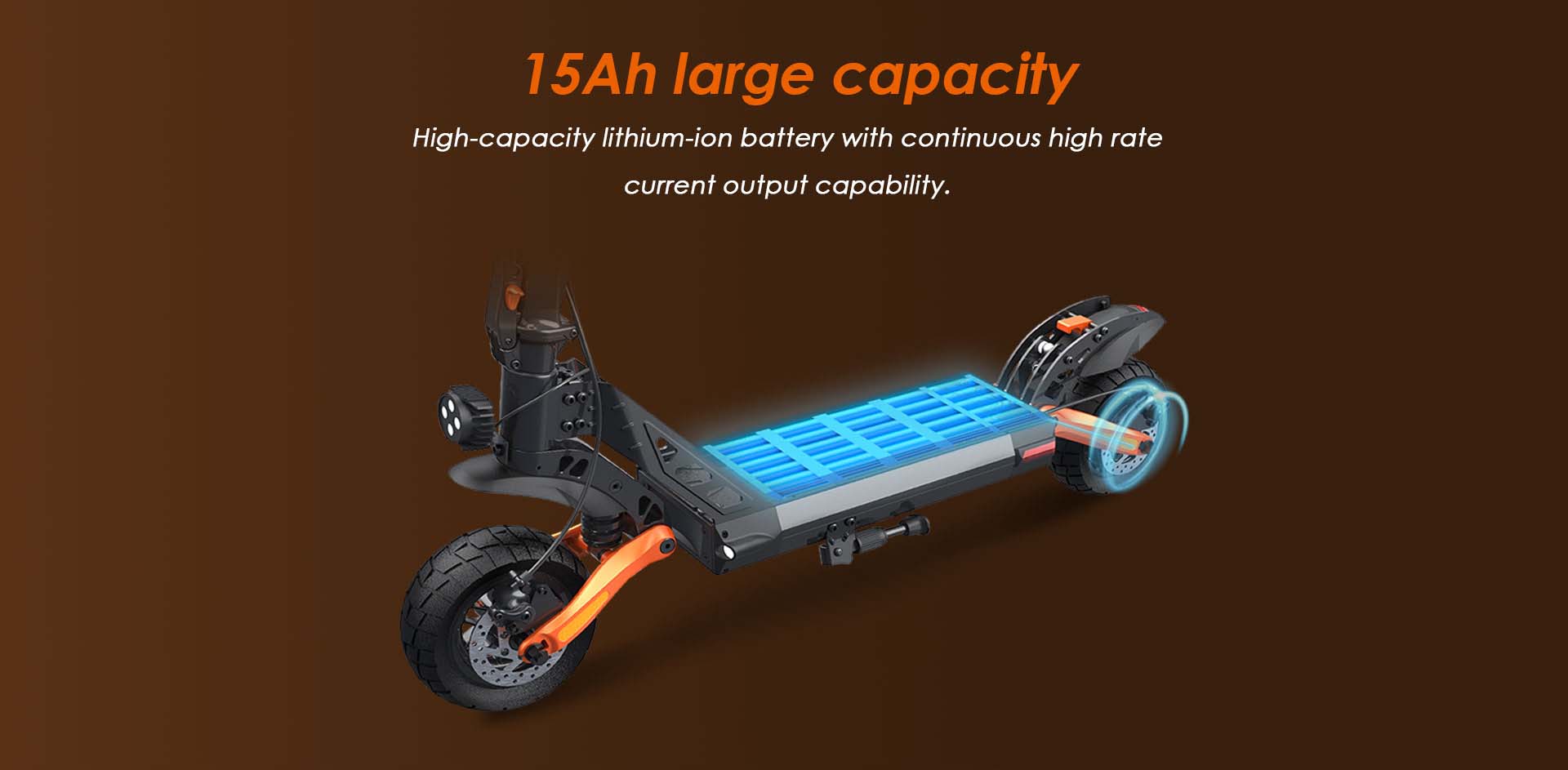

Battery

• Model: 18650 Lithium battery.
• Voltage: 48V.
• Capacity:
  • Single Cell Capacity: 2600mAh.
  • Battery Pack Capacity: 15.6Ah.
• Standard Power Consumption: 0.52kWh.
• Battery Protection System: Equipped with a Battery Management System (BMS).

Charger

• Input Voltage: 100-240VAC~50/60Hz.
• Input Current: 2A Max.
• Output Voltage: 54.6V.
• Output Current: 2A.
• Charging Time: 7-8 hours.

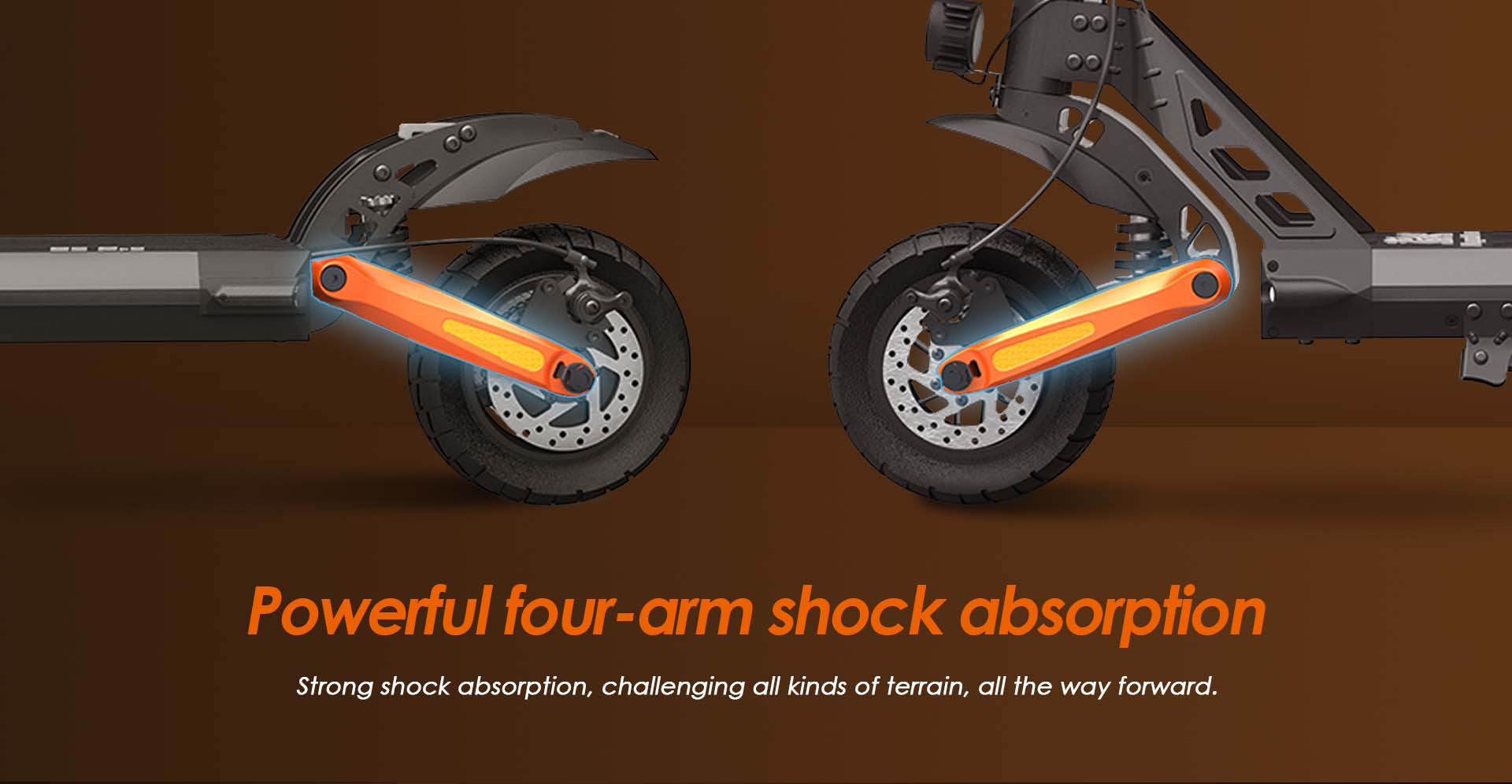

Shock Absorber System

• Front Shock Absorber: Spring shock adsorption.
• Rear Shock Absorber: Spring shock adsorption.

Light System

• Headlight:
  • Type: LED.
  • Power: 6W.
  • Illumination Angle: 45°.
  • Illumination Area: 5㎡.
• Turn Light: Yes.
• Taillight: The taillights are on when the headlight is on and flash when braking.

Tire

• Size: 9 inches.
• Type: Vacuum tire.
• Optimum Tire Pressure: 340kPa (50psi).

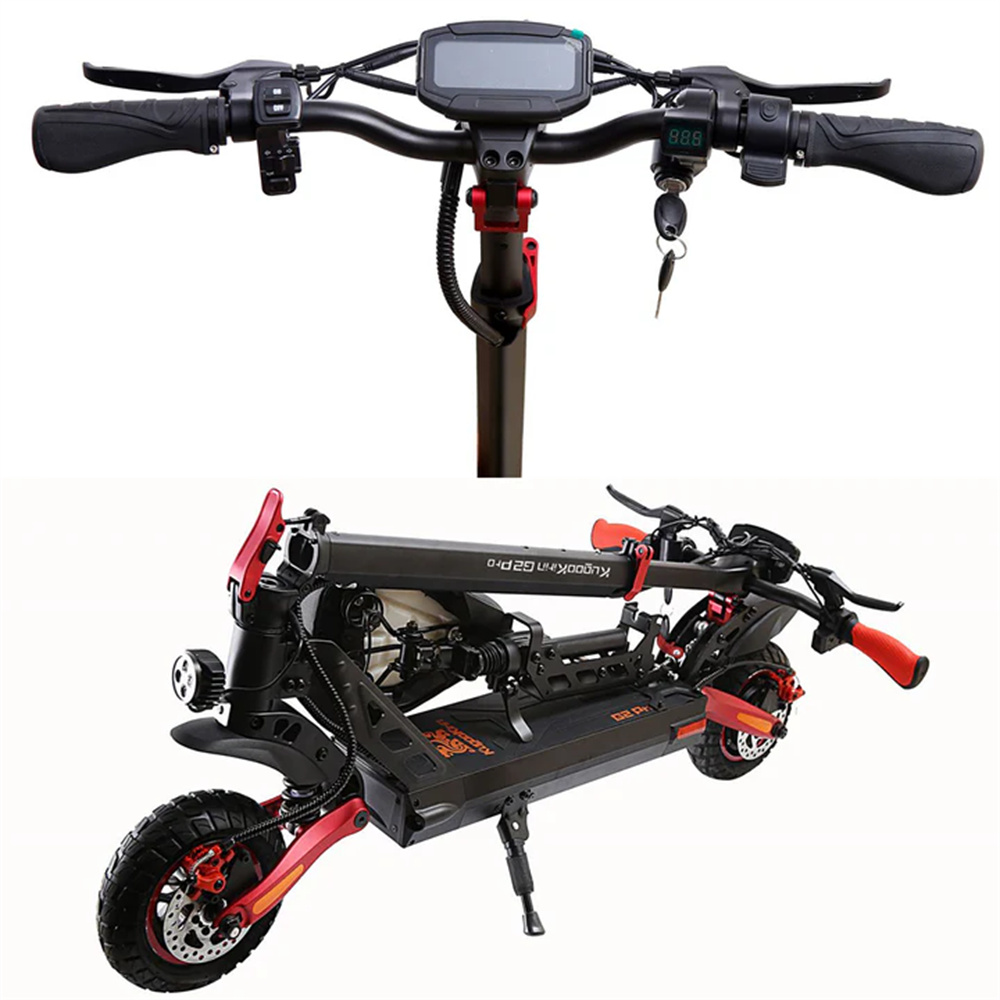

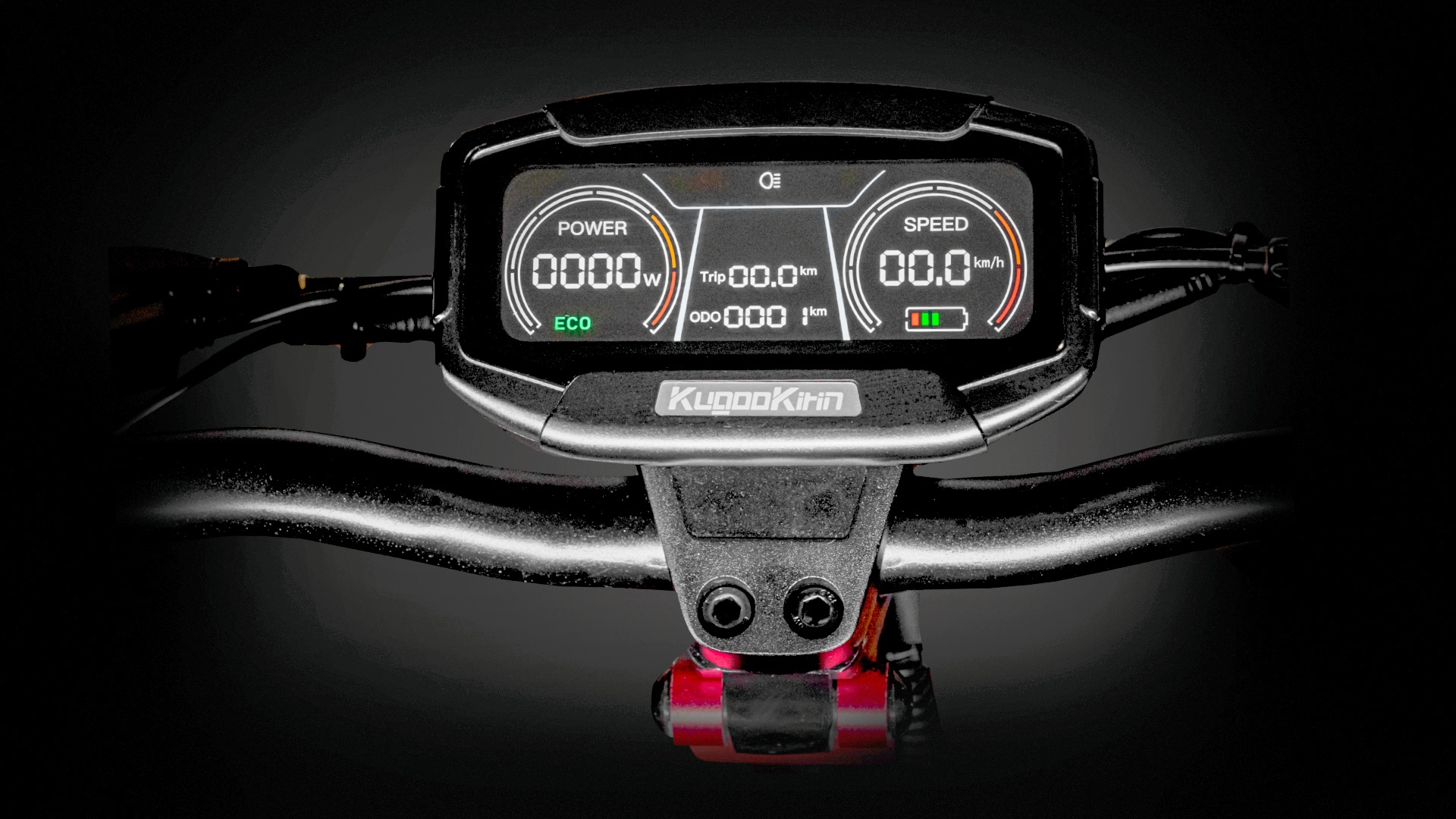

Instrument Panel

• Type: LED.
• Material: Instrument case ABS with instrument bracket PA6.
• Size: 118*73mm.
• Display Contents:
  • Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication, battery voltage indication, fault code indication, starting mode indication.
• Function Settings:
  • P1: Kilometer/Mile selection setting.
  • P2: Voltage level setting.
  • P3: Wheel diameter setting.
  • P4: Magnetic pole pair setting.
  • P5: Cruise and no cruise selection setting.
  • P6: Non-zero start and zero start selection setting.
  • P8: Automatic sleep time setting.
  • PA: Start force setting.
  • PB: Brake force setting.
  • PC: Total mileage clearing 0 setting.
  • Speed limit mode: Hold the brake handle and double-click the power button at the same time.

Packing List

Charger*1, Manual*1, Pump*1, Tool*1, Seat Kit*1, Seat Base*1, Seat Screws*4, Keys*2

Please check the instrument manual for further details.
