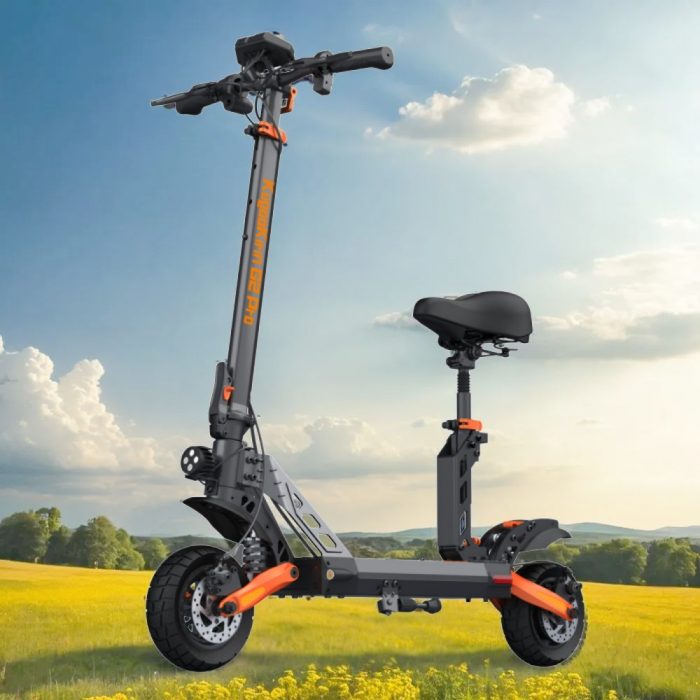

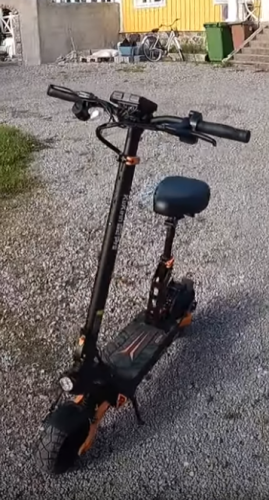

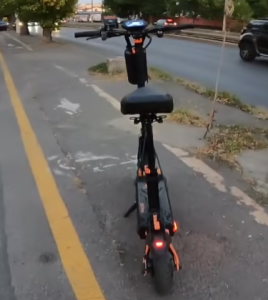

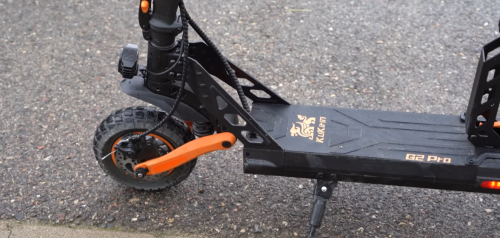

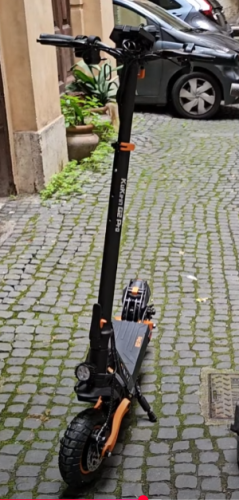

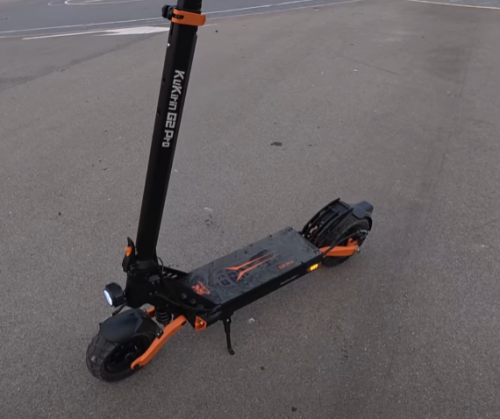

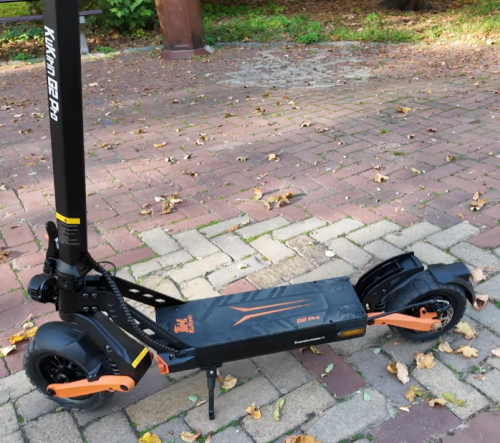

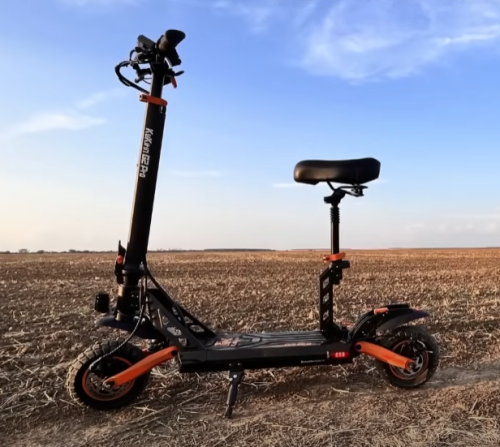

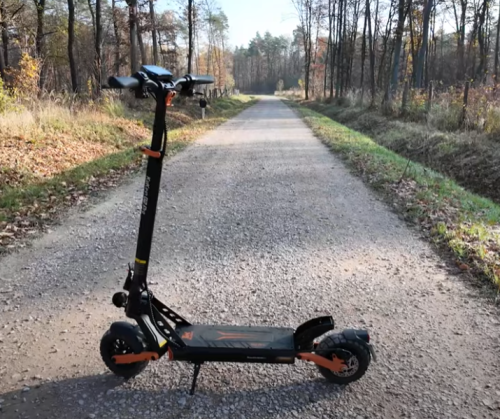

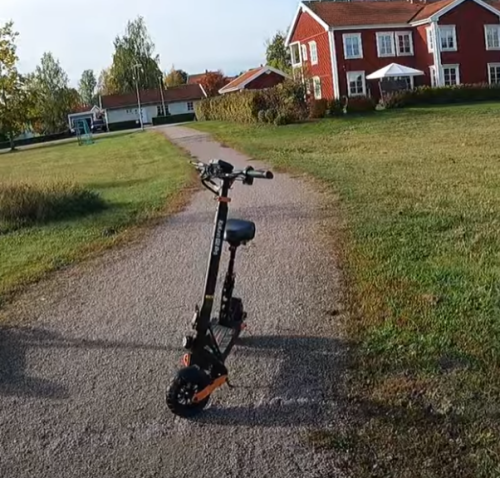

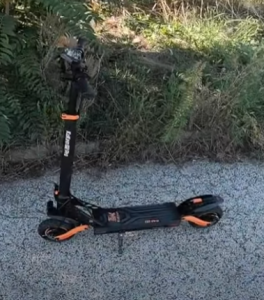

【Kukirin G2 Pro】600W rated Motor, 1000W max power, 48V, 15Ah, 55km Range, electric scooter with seat saddle for free [Ships from Poland Warehouse]

Description

Attention: Customers from non-EU countries will receive customs duties and need to pay it by themselves. UK customers are kindly advised that refunds and returns are not available, but parts for repairs can be provided. Please be aware of this before purchasing the scooter.

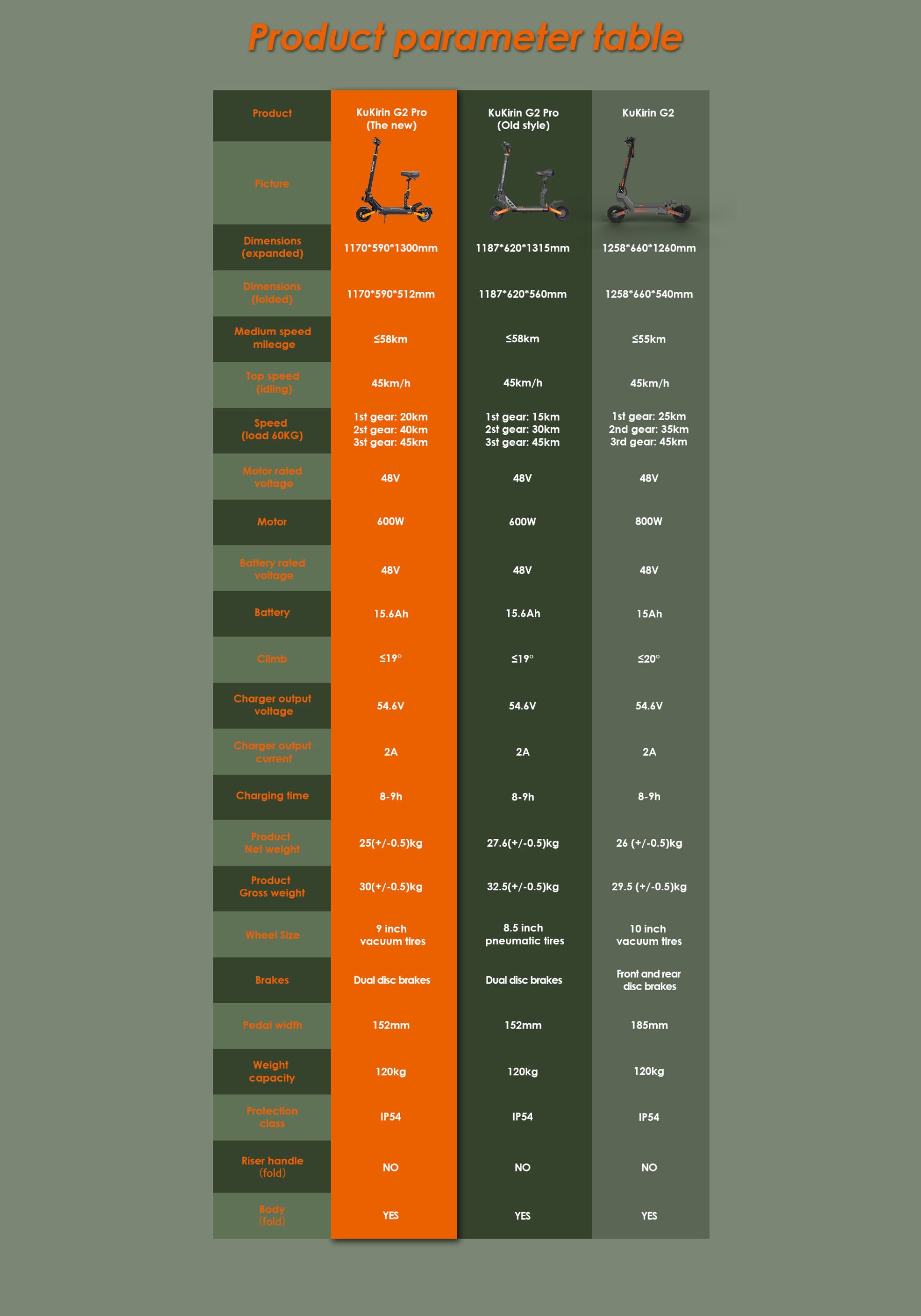

Specification:

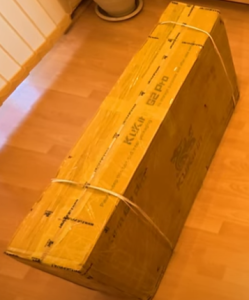

Packing Information

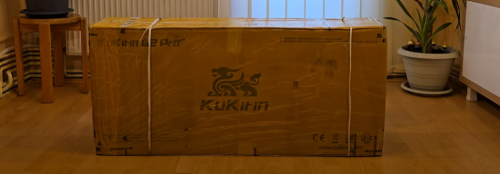

• Packing Size: The inner box size is 1190*225*525mm, while the outer box size is 1200*235*545mm.

Product Basic Parameters

• Weight:
  • Gross Weight: 30±0.5kg (total weight including packaging).
  • Net Weight: 25±0.5kg (total weight of the scooter with the seat).
• Dimensions:
  • Expanded Size: 1170*590*1300mm (length*width*height).

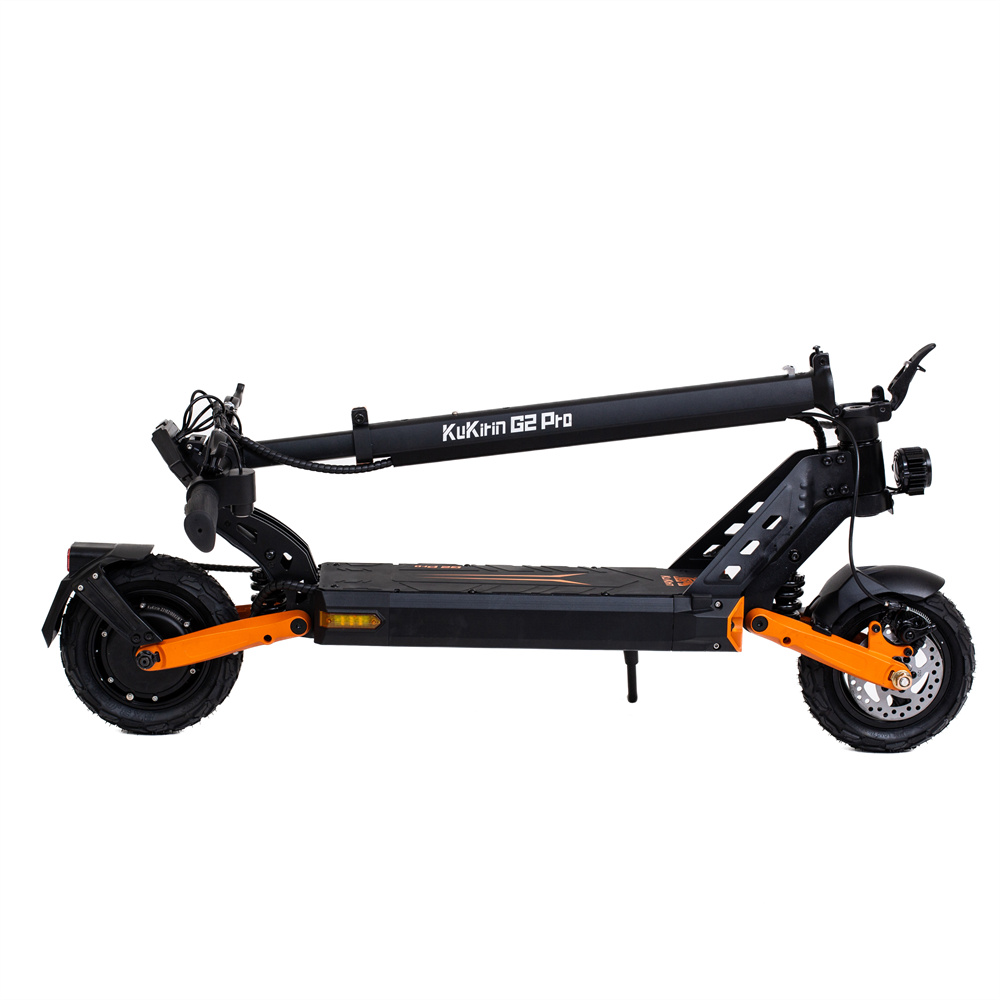

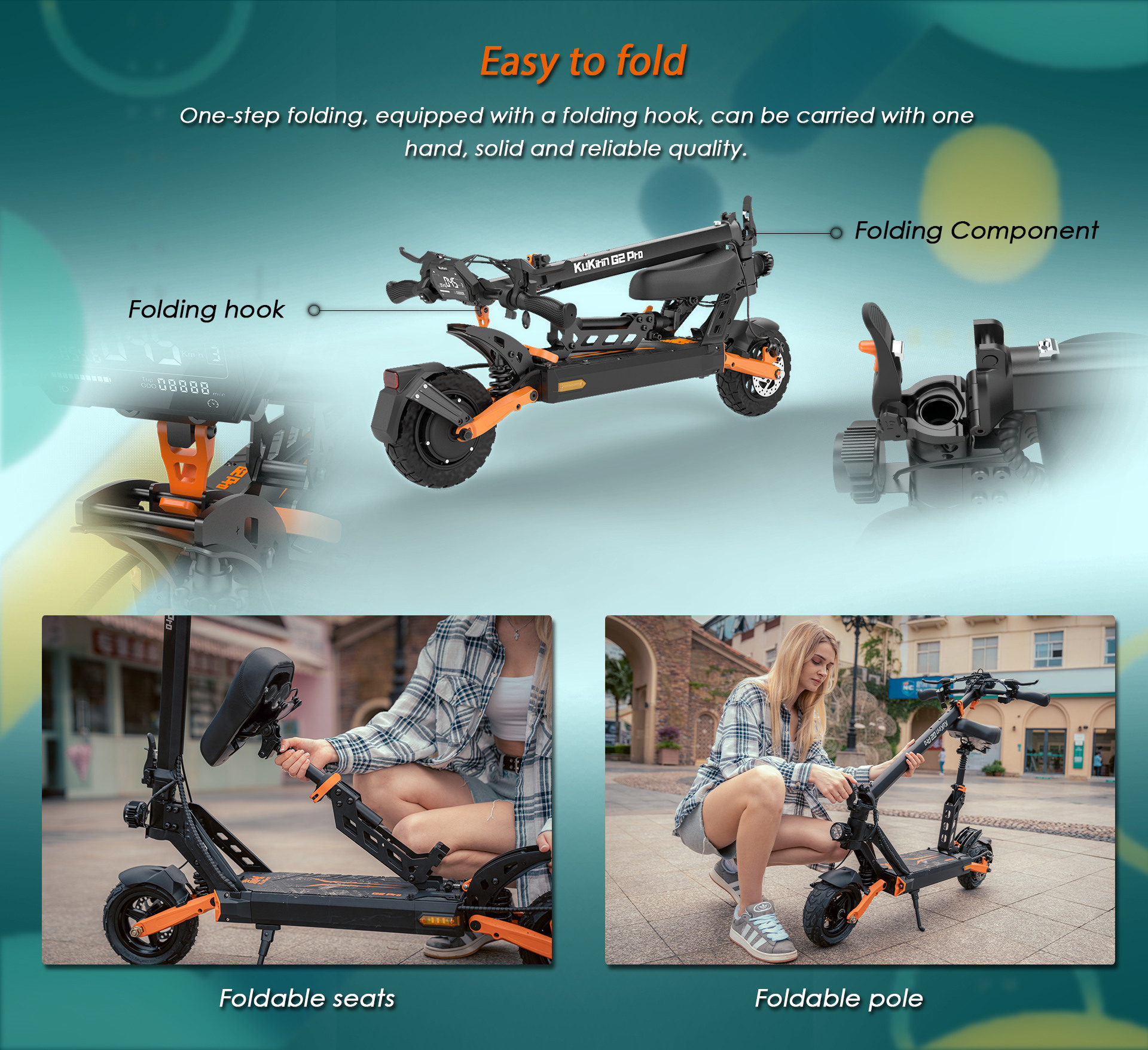

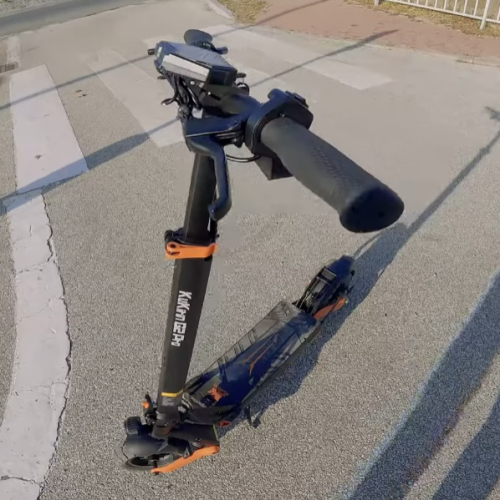

  • Folded Size: 1170*590*512mm (length*width*height).
  • Handlebar Diameter: 590mm.

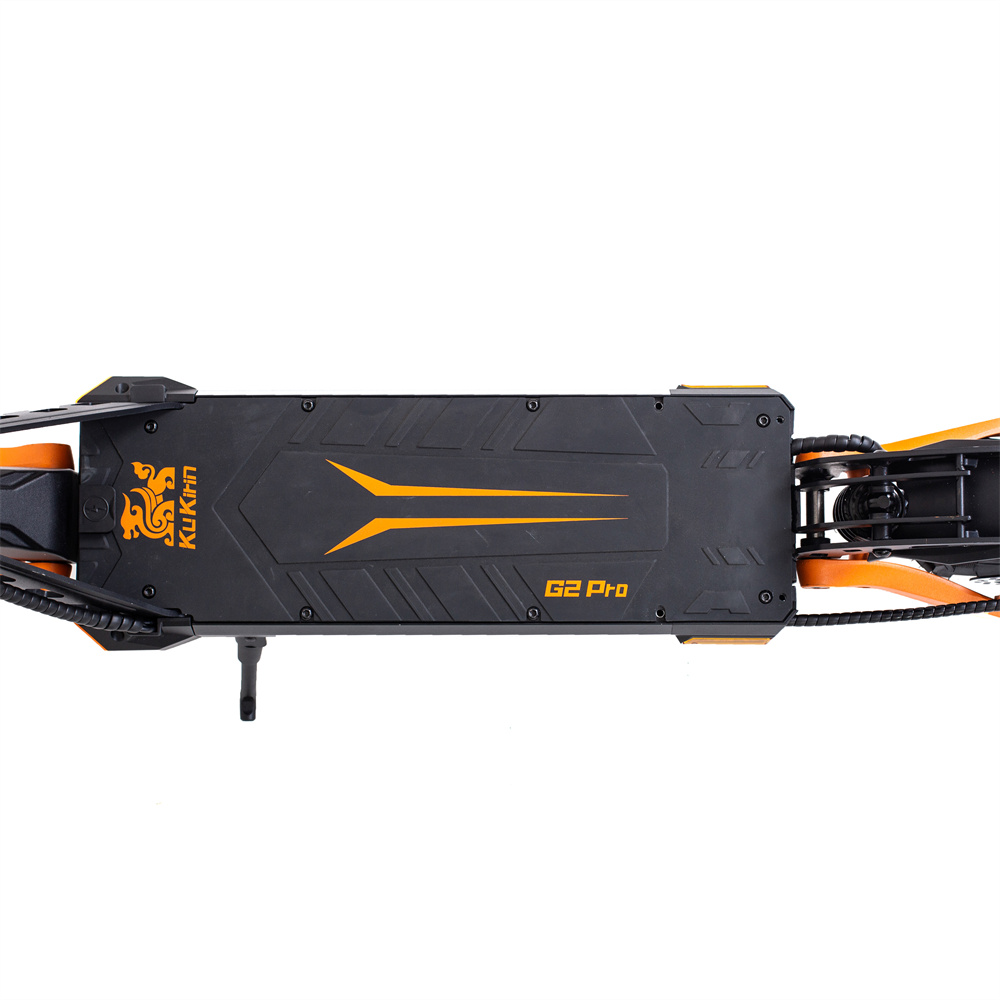

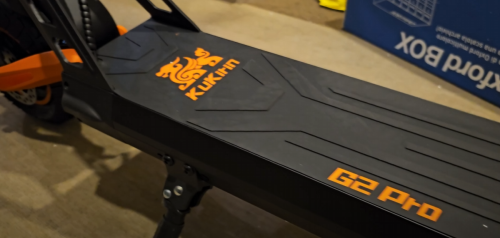

  • Pedal Size: 500*160mm (length*width).
  • Pedal to Handlebar Distance: 1010mm.
  • Chassis Height: 140mm from ground floor.
• Maximum Load: 120kg.

Speed

• Maximum Speed: 45km/h (with a 65kg load).
• Speed Settings:
  • 1st Gear: 23km/h (idling), 20km/h (with 65kg load).
  • 2nd Gear: 43km/h (idling), 40km/h (with 65kg load).
  • 3rd Gear: 55km/h (idling), 45km/h (with 65kg load).

Mileage

• Middle Speed Mileage: Up to 58km with a 65kg load on a full charge.

Performance

• Climbing Ability: Capable of climbing slopes up to 19° with a 65kg load.

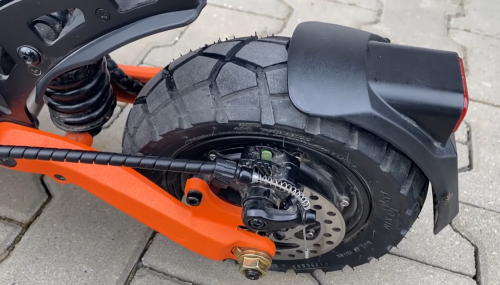

• Brake System: Front and rear disc brakes with an e-brake.
• Brake Distance: Stopping distance ranges from 5 to 12 meters.
• Waterproof Level: IP54.

Material

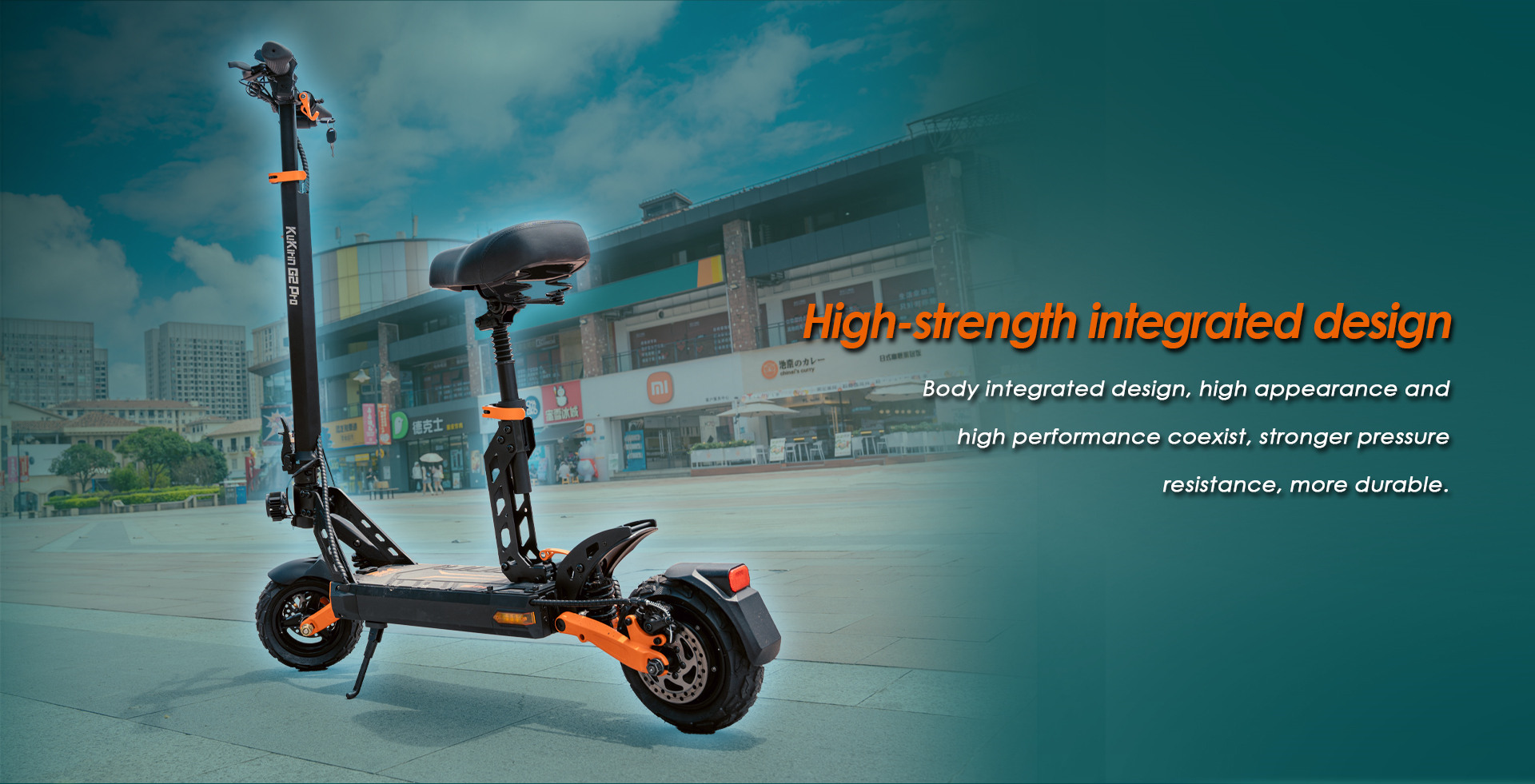

• Frame Material: Steel and Aluminum Hybrid Frame.

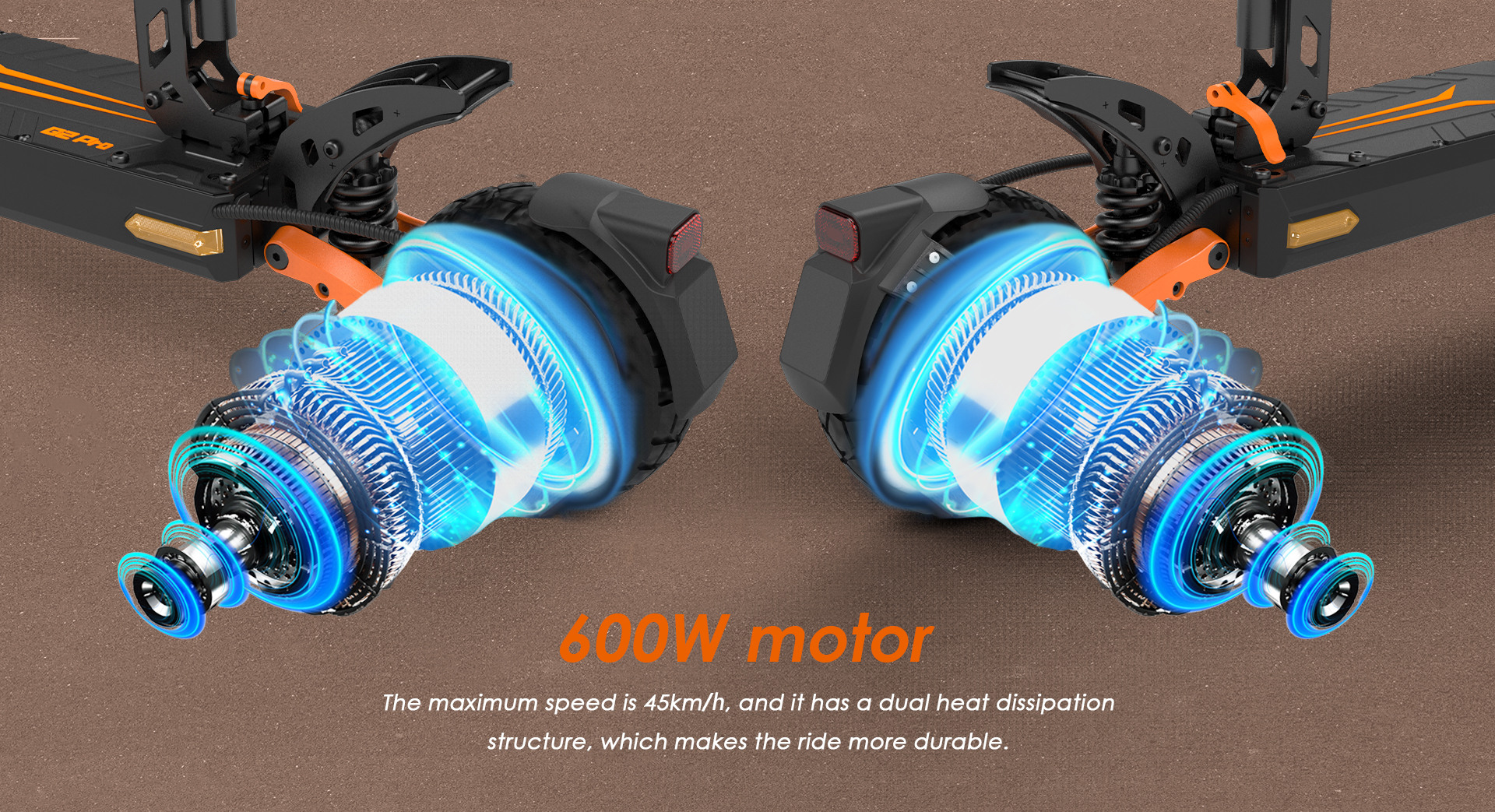

Motor

• Type: Hall brushless DC motor (rear wheel single drive).
• Voltage: 48V.
• Accelerate Mode: Sine wave.
• Power:
  • Rated Power: 600W.
  • Instantaneous Maximum Power: 1000W.
  • Rated Speed: 1080 rpm.
  • Maximum Output Torque: 21.93 N·m.

Battery

• Model: 18650 Lithium battery.
• Voltage: 48V.
• Capacity:
  • Single Cell Capacity: 2600mAh.
  • Battery Pack Capacity: 15.6Ah.
• Standard Power Consumption: 0.52kWh.
• Battery Protection System: Equipped with a Battery Management System (BMS).

Charger

• Input Voltage: 100-240VAC~50/60Hz.
• Input Current: 2A Max.
• Output Voltage: 54.6V.
• Output Current: 2A.
• Charging Time: 7-8 hours.

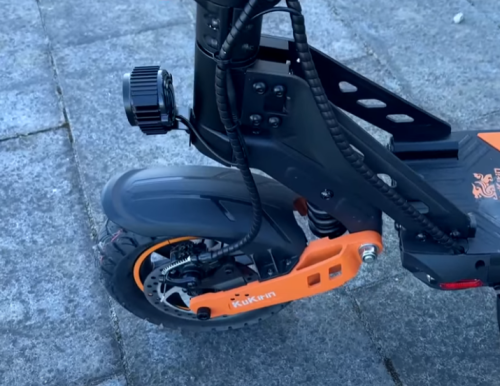

Shock Absorber System

• Front Shock Absorber: Spring shock adsorption.
• Rear Shock Absorber: Spring shock adsorption.

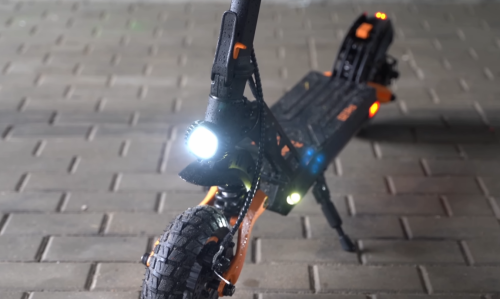

Light System

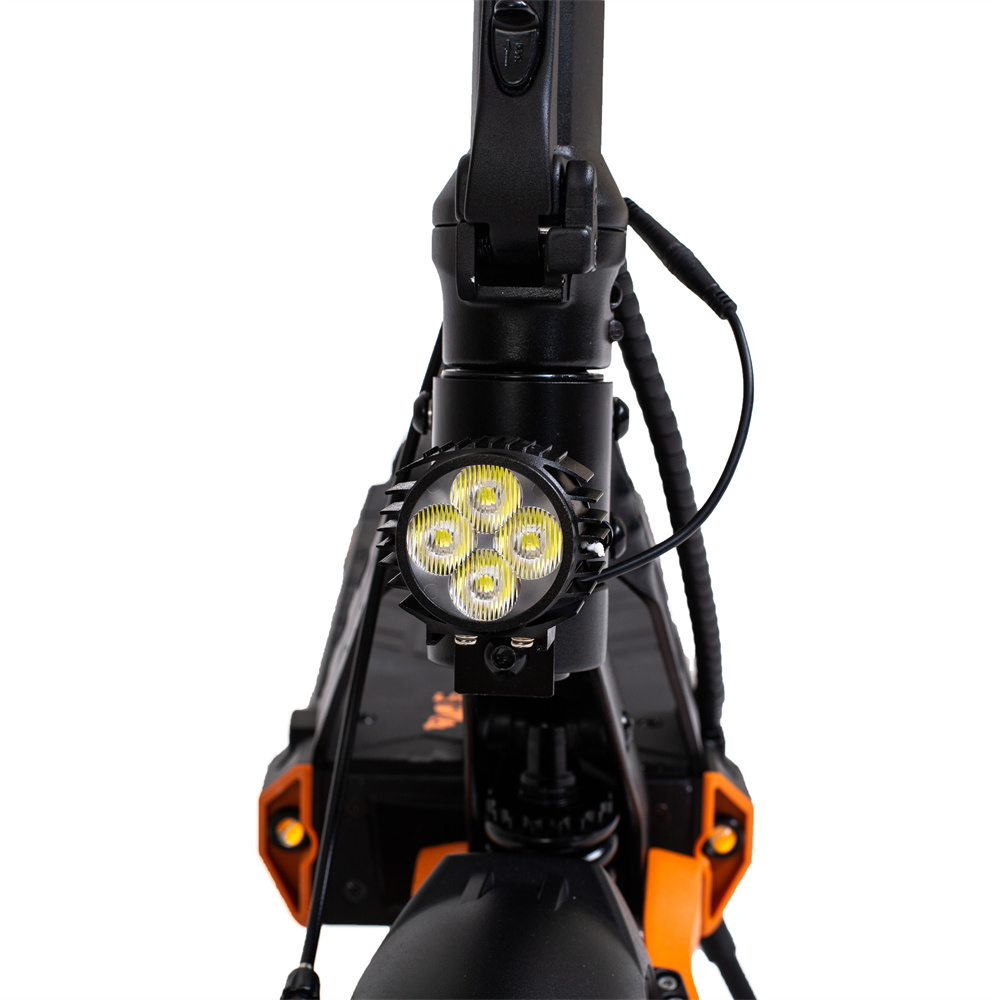

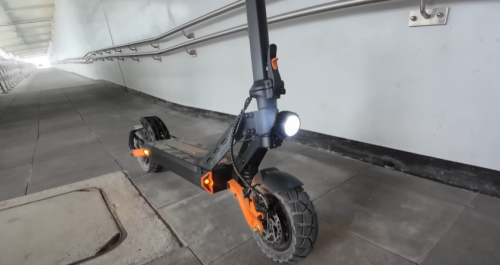

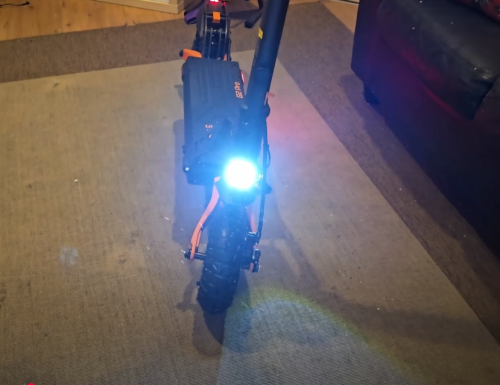

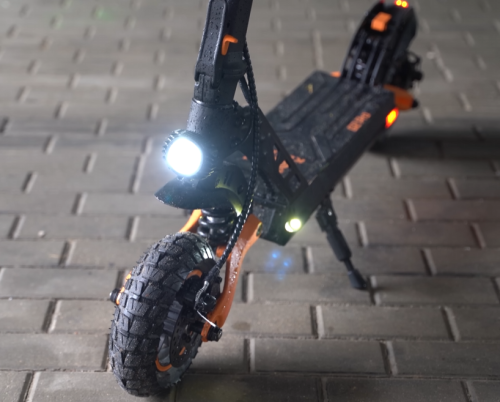

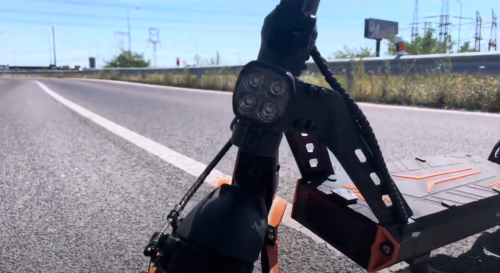

• Headlight:
  • Type: LED.
  • Power: 6W.
  • Illumination Angle: 45°.
  • Illumination Area: 5㎡.

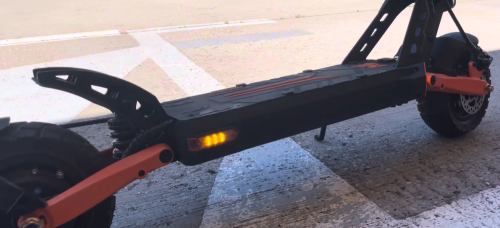

• Turn Light: Yes.
• Taillight: The taillights are on when the headlight is on and flash when braking.

Tire

• Size: 9 inches.
• Type: Vacuum tire.
• Optimum Tire Pressure: 340kPa (50psi).

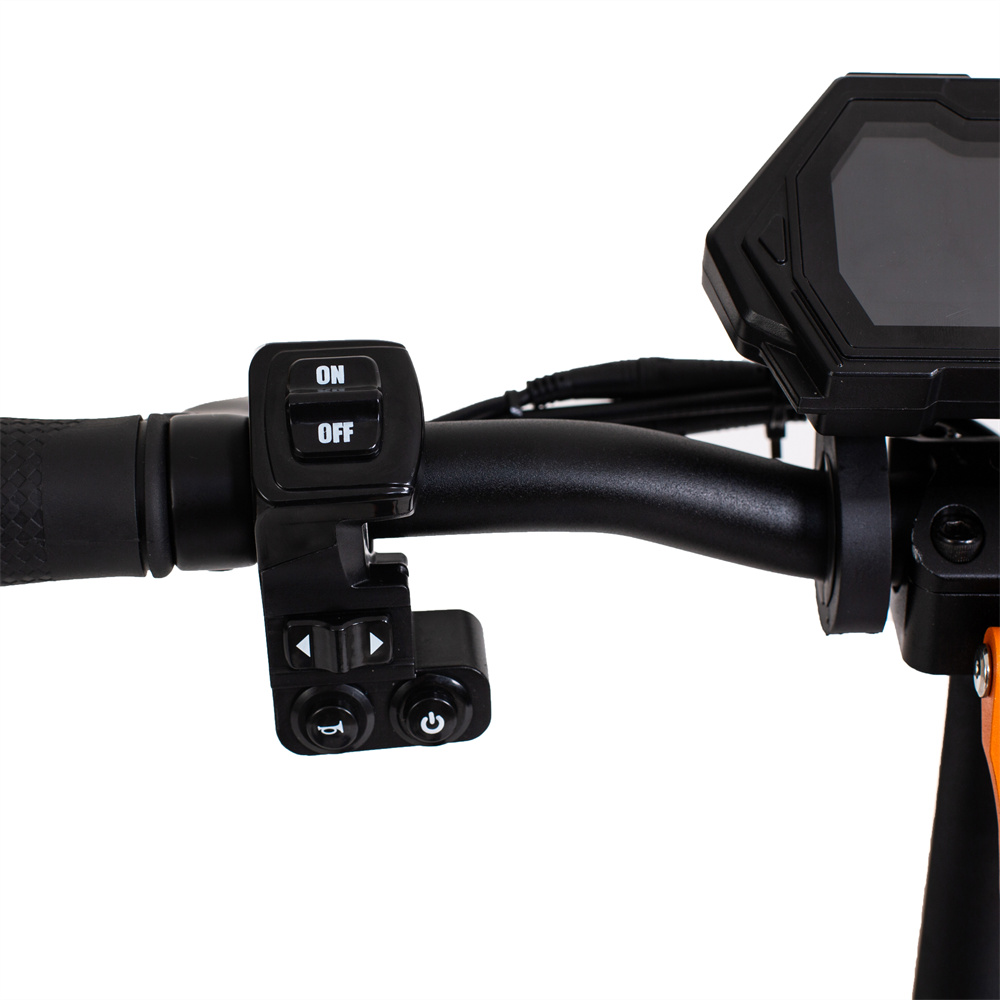

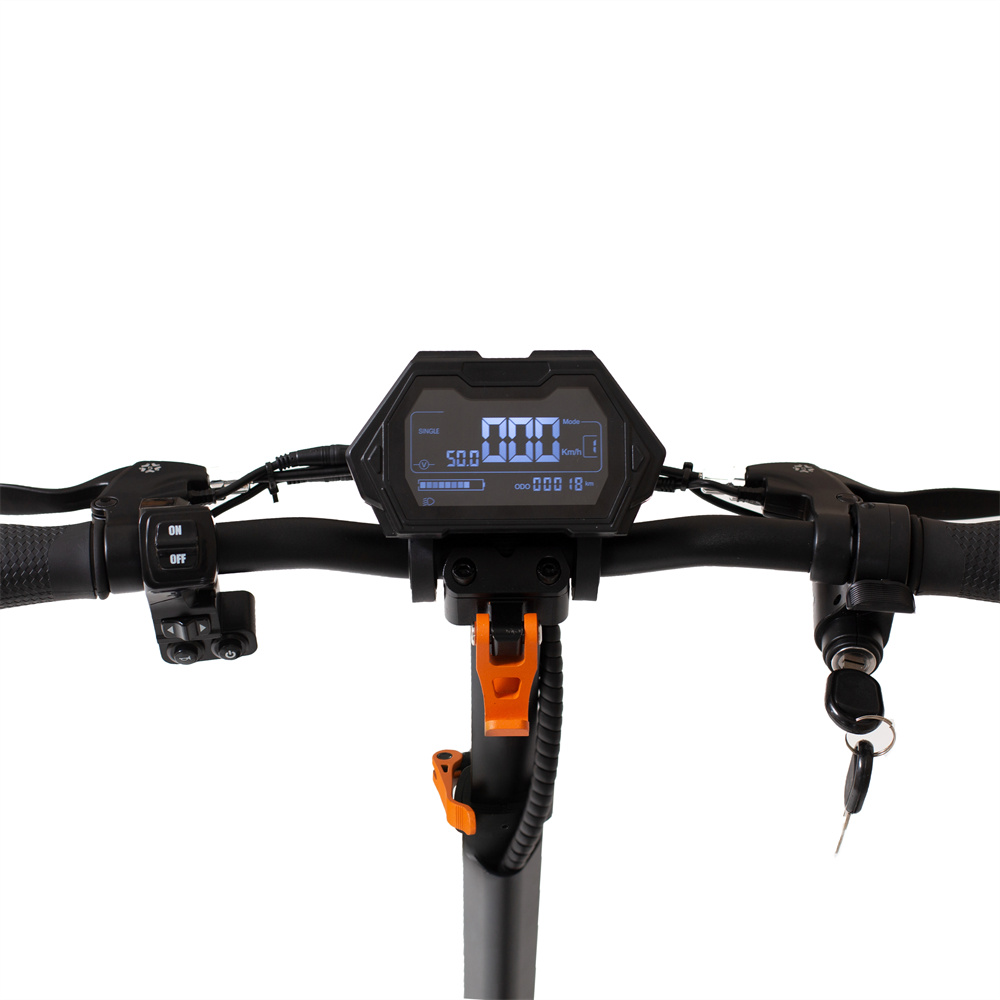

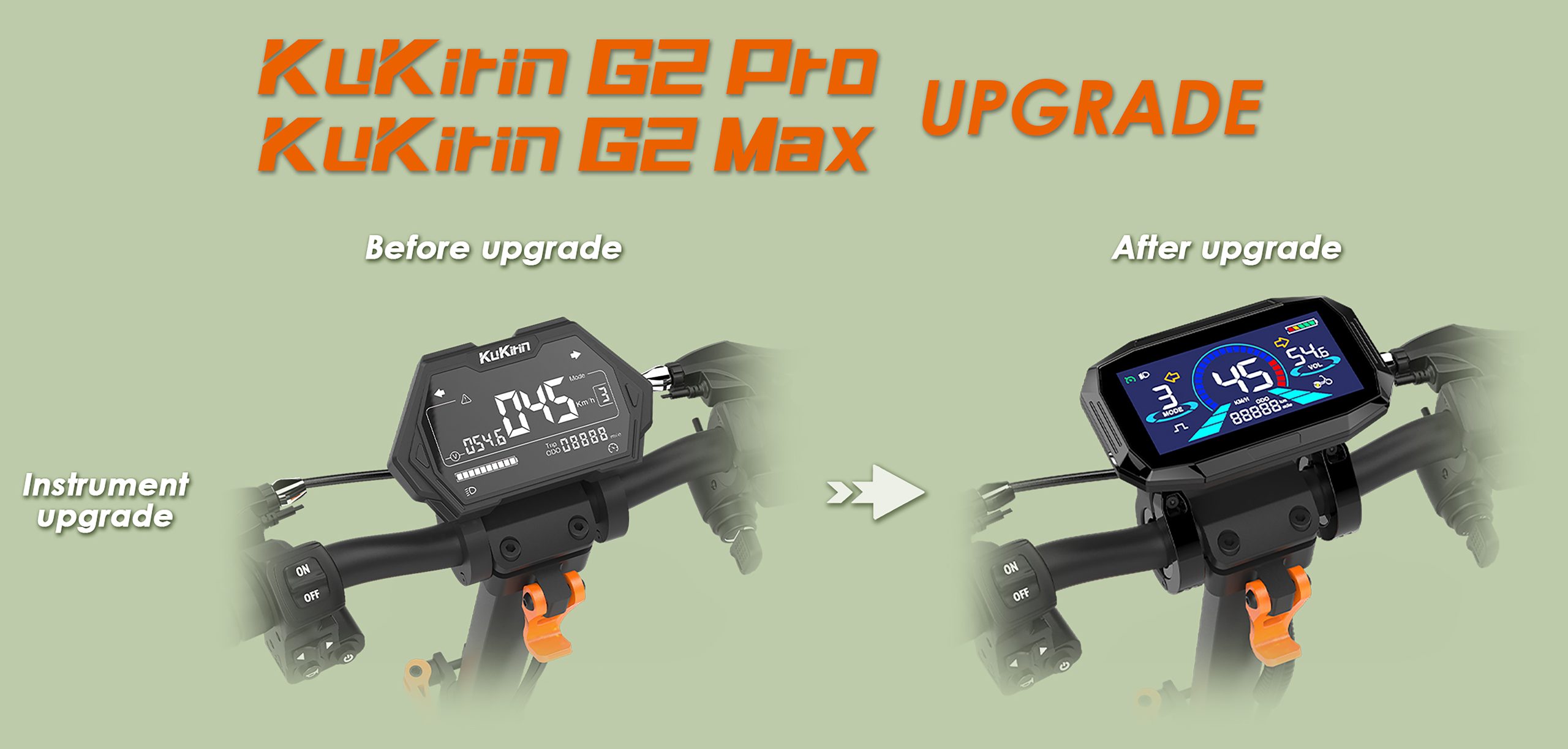

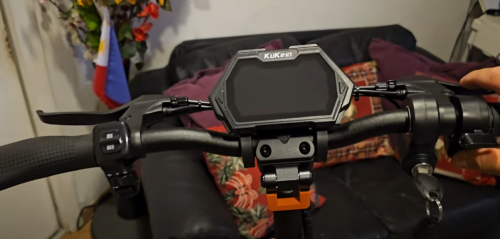

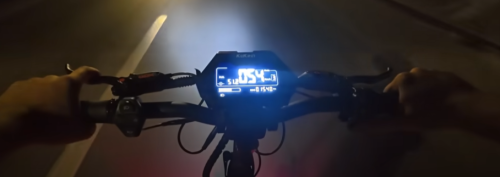

Instrument Panel

• Type: LED.
• Material: Instrument case ABS with instrument bracket PA6.
• Size: 118*73mm.
• Display Contents:
  • Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication, battery voltage indication, fault code indication, starting mode indication.
• Function Settings:
  • P1: Kilometer/Mile selection setting.
  • P2: Voltage level setting.
  • P3: Wheel diameter setting.
  • P4: Magnetic pole pair setting.
  • P5: Cruise and no cruise selection setting.
  • P6: Non-zero start and zero start selection setting.
  • P8: Automatic sleep time setting.
  • PA: Start force setting.
  • PB: Brake force setting.
  • PC: Total mileage clearing 0 setting.
  • Speed limit mode: Hold the brake handle and double-click the power button at the same time.

Packing List

Charger*1, Manual*1, Pump*1, Tool*1, Seat Kit*1, Seat Base*1, Seat Screws*4, Keys*2



Please check the instrument manual for further details.
